RA handle
RA adapter
IPD Tools & Extras · prosthetic instruments
Screwdrivers, adapter and torque ratchet IPD
A single prosthetic case may require HEX, Unigrip, Torx, TPA or a dedicated Multi-Unit tool. IPD therefore builds the portfolio around a common RA mandreluplatform, several working lengths and modular handles: from a short clinical grip through a laboratory handle to a torque ratchet with adapter.
One system, three ways to hold it
The RA shank links the screwdriver, hand handle and torque ratchet
For the user, the key point is that the working tip and the way it is held are two separate things. The RA shank with its right-angle notch allows the same type of prosthetic instrument to be used in a short clinical handle, a long laboratory grip or, via an adapter, in a torque ratchet. The result is fewer duplicate tools and a more logical instrument set.
Torque is not a property of the screwdriver. The same instrument profile can be used with different fixation screws that require different torques. Always verify the exact value in the current IPD torque table or in the IFU for the relevant system.
Complete instrument catalogue · pages 184–187

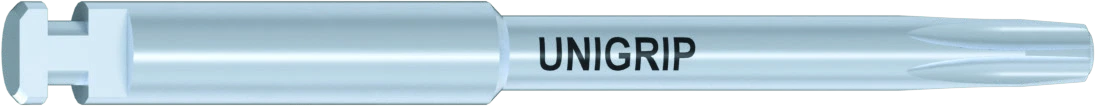

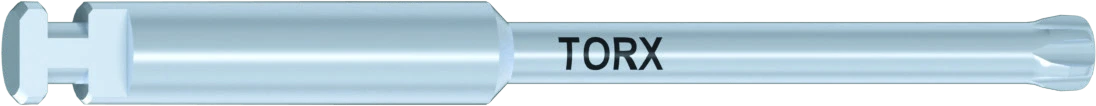

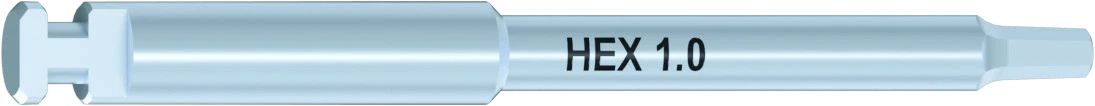

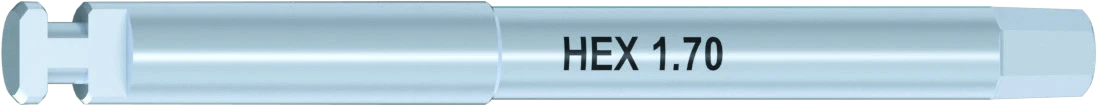

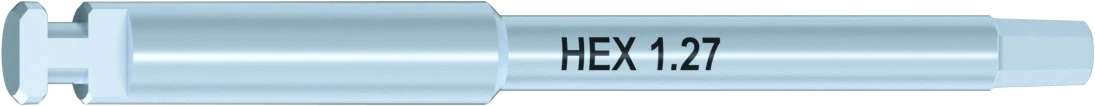

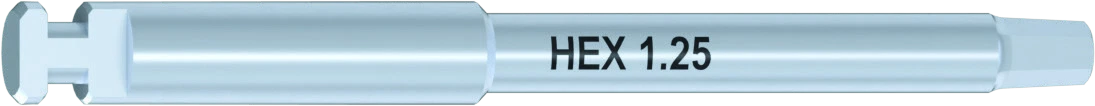

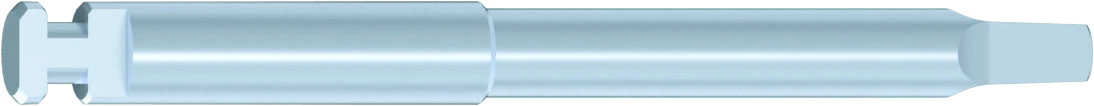

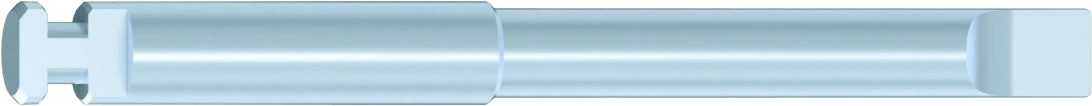

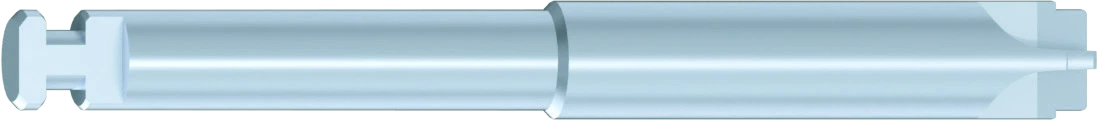

From HEX through Unigrip and Torx to TPA
This section now covers all instruments and sets shown on the supplied catalogue pages. It is more than an image gallery: selecting an instrument opens a clean product image and catalogue table with lengths and exact references. This is faster than hunting for a small row in a PDF and also creates natural SEO entry points for the individual profiles.
UX recommendation: always select the screwdriver profile according to the technical specification of the exact fixation screw. HEX 1.18, 1.20, 1.25, 1.27 and 1.30 are distinct geometries; visual similarity is not a reason to substitute one for another.
Dedicated instruments
TPA, Multi-Unit and PSD: when a universal HEX is not enough
TPA · 25 mm
For angulated transocclusal screw channels and the corresponding pentalobular TPA connection. The supplied Czech set descriptions state use from 0–30°, but the final limit is always defined by the exact TPA/ASC component.

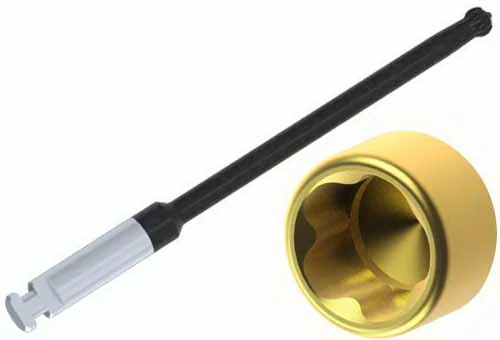

TPA · 32 mm
The longer version provides more working space with a deeper screw channel or larger restoration and is a natural part of the 32 mm laboratory set.

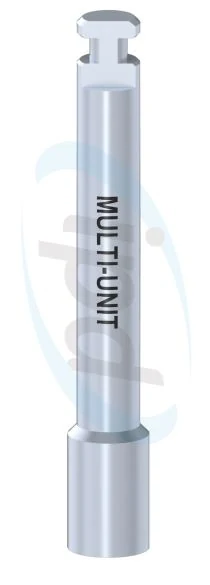

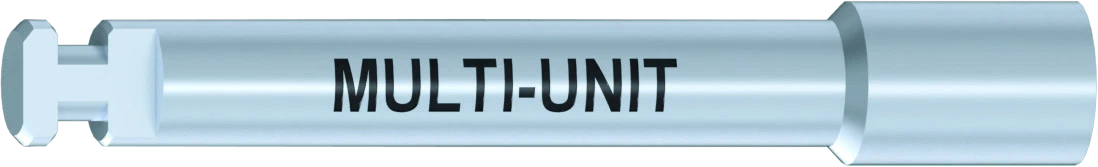

Multi-Unit · 20 mm
A dedicated instrument for handling compatible Multi-Unit abutments. The catalogue lists reference IPD/LL-AB-00.

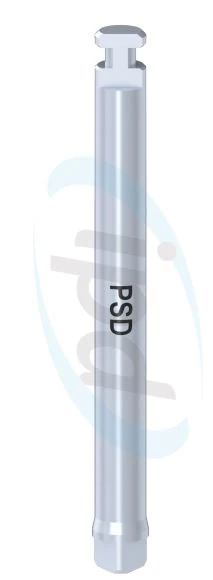

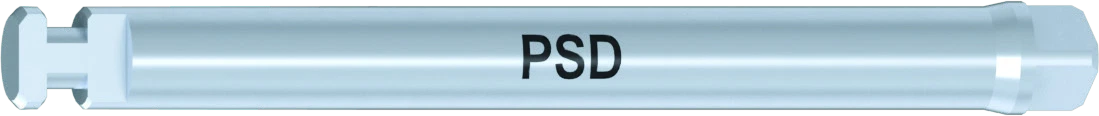

PSD · 25 mm
Instrument for the PSD attachment system. IPD also offers a separate tool for inserting and removing PSD inserts.

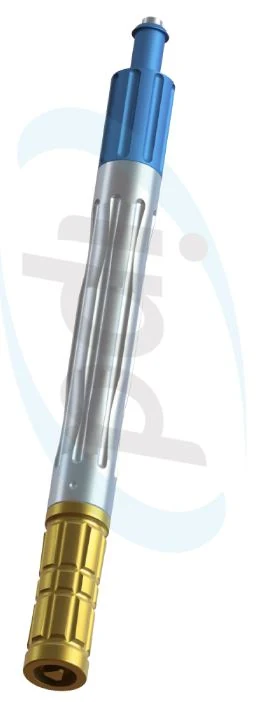

PSD insertion / extraction tool
Helps separate work on the fixation screw from manipulation of the attachment retention inserts. This reduces the risk of using one unsuitable tool “for everything”.
Guide tool for shortening a Ti-base
The Tools & Extras portfolio is not limited to screw tightening. This guide illustrates the wider IPD logic: a dedicated aid should help the technician perform a repeatable step without improvisation.
SEO & UX guidance: a conventional fixation screw for a straight channel and a TPA screw for an angulated channel are not interchangeable merely because the implant platform is the same. The user must verify at the same time the exact screw reference, driver profile and tightening torque. That is why the full searchable Screw Specifications table appears below.
Multi-Unit in practice: from the correct instrument to CAD
We have brought Unigrip vs HEX 2.0, the RA adapter, torque by REF, MUA scan bodies and Exocad into one clinical–laboratory protocol.
Open the MUA fixation → CAD workflow →Custom Ti-Base System · Cutting Guide

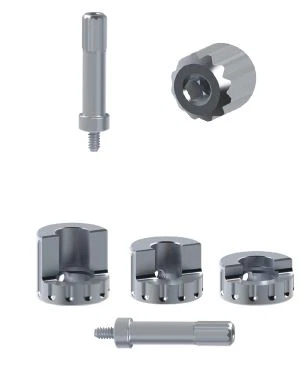

IPD guide tools for shortening CAD/CAM Ti-bases
The catalogue differentiates the guide tools by platformy Narrow / Standard / Wide, target height 3,5 / 5,0 / 6,5 mm and by Ti-base design logic: Engaging = crown Ti-base with anti-rotation, Non-engaging = bridge Ti-base without indexing. The catalogue data have been rebuilt as HTML so they are readable, searchable and usable on mobile devices.
How to read the guide-tool system
First select the correct group by implant system and platform. Then decide whether the restoration uses a crown Ti-base (Engaging) or a bridge Ti-base (Non-engaging). Only within the correct kit should you select the final occlusal height of 3.5 / 5.0 / 6.5 mm.
Important: the kit code cannot always be inferred safely from the letters in the Ti-base reference alone. The assignments below therefore follow exactly what is listed on catalogue pages 90–94.
Crown Ti-bases · Engaging / indexed
For single crowns where anti-rotation is required. Each platform has three target heights.
| Platform | 3.5 mm | 5.0 mm | 6.5 mm |
|---|---|---|---|
| Narrow | IPD/KA-IN-35 | IPD/KA-IN-50 | IPD/KA-IN-65 |
| Standard | IPD/KA-IR-35 | IPD/KA-IR-50 | IPD/KA-IR-65 |
| Wide | IPD/KA-IW-35 | IPD/KA-IW-50 | IPD/KA-IW-65 |
Bridge Ti-bases · Non-engaging / non-indexed
For multi-unit restorations where the connection should be free of anti-rotational indexing.
| Platform | 3.5 mm | 5.0 mm | 6.5 mm |
|---|---|---|---|
| Narrow | IPD/KR-IN-35 | IPD/KR-IN-50 | IPD/KR-IN-65 |
| Standard | IPD/KR-IR-35 | IPD/KR-IR-50 | IPD/KR-IR-65 |
| Wide | IPD/KR-IW-35 | IPD/KR-IW-50 | IPD/KR-IW-65 |

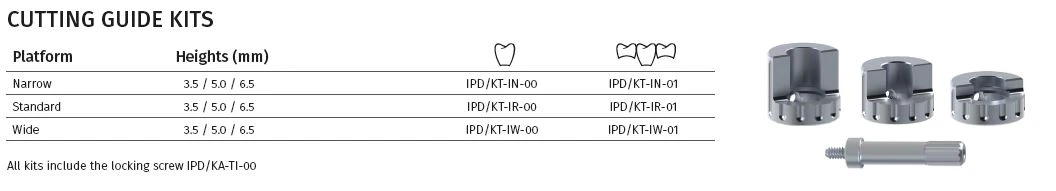

Cutting Guide kits
Each kit contains three heights, 3.5 / 5.0 / 6.5 mm, plus the fixation screw IPD/KA-TI-00.
| Platform | Crown / Engaging | Bridge / Non-engaging |
|---|---|---|
| Narrow | IPD/KT-IN-00 | IPD/KT-IN-01 |
| Standard | IPD/KT-IR-00 | IPD/KT-IR-01 |
| Wide | IPD/KT-IW-00 | IPD/KT-IW-01 |
Fixation screw and scan-body screwdriver
The Cutting Guide is secured with the fixation screw IPD/KA-TI-00 using a 1.20 HEX profile. The catalogue also specifies HEX 1.20 for 10 and 15 mm scan bodies.
| Use | Dimension / height | Reference |
|---|---|---|
| Cutting Guide fixation screw | 1.20 HEX | IPD/KA-TI-00 |
| Scan Body screwdriver | 10 mm | IPD/PH-20-18 |
| Scan Body screwdriver | 15 mm | IPD/PH-20-25 |

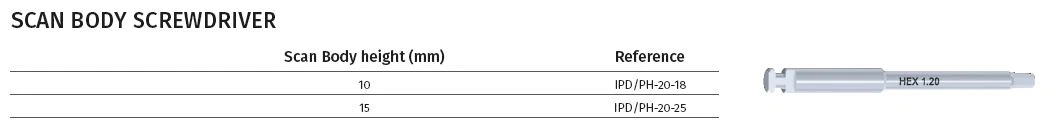

Scan Body screwdriver · HEX 1.20

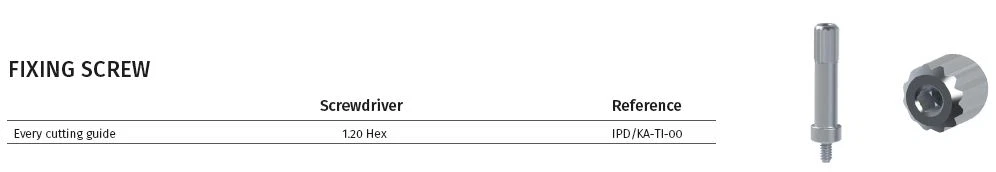

Cutting Guide fixation screwIPD/KA-TI-00 · 1.20 HEX.
Heights and platformsNarrow · Standard · Wide, each with 3.5 / 5.0 / 6.5 mm.
TPA connectionFor the version with an angulation window, use the corresponding 18 / 25 / 32 mm TPA screwdriver.Find the Cutting Guide by implant system
Selection follows Custom Ti Base System catalogue pages 90–94. The column Crown corresponds to the Engaging version, while the column Bridge corresponds to the Non-engaging version. “Not listed” means that the catalogue does not assign a specific Cutting Guide in that row.
Show matching systems44 items
| Implant system | Platform | Ti-base GH | Crown · Engaging | Bridge · Non-engaging |
|---|---|---|---|---|
| Nobel Biocare® Branemark System® | NP Ø3.5 | 1.5 | IPD/KT-IN-00 | IPD/KT-IN-01 |
| Nobel Biocare® Branemark System® | RP Ø4.1 | 0.5 / 1.5 / 2.5 | IPD/KT-IR-00 | IPD/KT-IR-01 |
| Nobel Biocare® Branemark System® | WP Ø5.1 | 1.3 | IPD/KT-IW-00 | not listed |
| Nobel Biocare® Multi-unit System | RP Ø4.8 | 0.2 | not listed | not listed |
| Nobel Biocare® Nobel Active® | Ø3.0 | 0.8 / 1.5 / 2.5 | IPD/KT-IN-00 | IPD/KT-IN-01 |
| Nobel Biocare® Nobel Active® | NP Ø3.5 | 0.5 / 1.5 / 2.5 / 3.5 | IPD/KT-IN-00 | IPD/KT-IN-01 |
| Nobel Biocare® Nobel Active® | RP Ø4.3 | 0.5 / 1.5 / 2.5 | IPD/KT-IR-00 | IPD/KT-IR-01 |
| Biomet® 3i® Osseotite® | NP Ø3.4 | 1.5 | IPD/KT-IN-00 | IPD/KT-IN-01 |
| Biomet® 3i® Osseotite® | RP Ø4.1 | 0.5 / 1.5 / 2.5 | IPD/KT-IR-00 | not listed |
| Biomet® 3i® Osseotite® | WP Ø5.0 | 0.5 / 1.5 | IPD/KT-IW-00 | IPD/KT-IW-01 |
| Biomet® 3i® Osseotite® Certain® | NP Ø3.4 | 0.5 / 1.5 / 2.5 | IPD/KT-IN-00 | IPD/KT-IN-01 |
| Biomet® 3i® Osseotite® Certain® | RP Ø4.1 | 0.5 / 1.5 | IPD/KT-IR-00 | IPD/KT-IR-01 |
| Biomet® 3i® Osseotite® Certain® | WP Ø5.0 | 0.5 / 1.5 | IPD/KT-IW-00 | IPD/KT-IW-01 |
| Straumann® Tissue Level | RN Ø4.8 | 0.4 | IPD/KT-IR-00 | IPD/KT-IR-01 |
| Straumann® Tissue Level | WN Ø6.5 | according to the Ti-base catalogue reference | IPD/KT-IW-00 | IPD/KT-IW-01 |
| Straumann® Bone Level | NC Ø3.3 | 0.5 / 1.5 / 2.5 / 3.5 | IPD/KT-IN-00 | IPD/KT-IN-01 |
| Straumann® Bone Level | RC Ø4.1 | 0.5 / 1.5 / 2.5 / 3.5 | IPD/KT-IR-00 | IPD/KT-IR-01 |
| Straumann® BLX® | RB/WB | 1.0 / 2.0 / 3.0 | IPD/KT-IR-00 | IPD/KT-IR-01 |
| Straumann® SRA® | Ø3.5 / Ø4.6 | 0.2 | not listed | not listed |
| Astra® OsseoSpeed® | Yellow Ø3.0 | 0.8 / 1.5 / 2.5 | IPD/KT-IN-00 | IPD/KT-IN-01 |
| Astra® OsseoSpeed® | Aqua Ø3.5–4.0 | 0.5 / 1.5 / 2.5 / 3.5 | IPD/KT-IN-00 | IPD/KT-IN-01 |
| Astra® OsseoSpeed® | Lilac Ø4.5–5.0 | 0.5 / 1.5 | IPD/KT-IR-00 | IPD/KT-IR-01 |
| Astra® Evolution® | XS Ø3.0 | 0.5 / 1.5 / 2.5 | IPD/KT-IN-00 | IPD/KT-IN-01 |
| Astra® Evolution® | S Ø3.6 | 0.5 / 1.5 / 2.5 / 3.5 | IPD/KT-IN-00 | IPD/KT-IN-01 |
| Astra® Evolution® | M Ø4.2 | 0.5 / 1.5 / 2.5 / 3.5 | IPD/KT-IR-00 | IPD/KT-IR-01 |
| Astra® Evolution® | L Ø4.8 | 0.5 / 1.5 / 2.5 | IPD/KT-IW-00 | IPD/KT-IW-01 |
| Zimmer® Screw Vent® | Ø3.5 | 0.5 / 1.5 / 2.5 | IPD/KT-IN-00 | IPD/KT-IN-01 |
| Zimmer® Screw Vent® | Ø4.5 | 0.5 / 1.5 / 2.5 | IPD/KT-IR-00 | IPD/KT-IR-01 |
| Zimmer® Screw Vent® | Ø5.7 | 0.5 | IPD/KT-IW-00 | IPD/KT-IW-01 |
| BioHorizons® Tapered Internal | Ø3.0 | 0.5 / 1.5 / 2.5 | IPD/KT-IN-00 | IPD/KT-IN-01 |
| BioHorizons® Tapered Internal | Ø3.5 | 0.5 / 1.5 / 2.5 | IPD/KT-IN-00 | IPD/KT-IN-01 |
| BioHorizons® Tapered Internal | Ø4.5 | 0.5 / 1.5 / 2.5 | IPD/KT-IR-00 | IPD/KT-IR-01 |
| BioHorizons® Tapered Internal | Ø5.7 | 0.5 | IPD/KT-IW-00 | IPD/KT-IW-01 |
| Hiossen Implant® / Osstem TSIII® | M Ø3.5 | 1.0 / 2.0 / 3.0 | IPD/KT-IN-00 | IPD/KT-IN-01 |
| Hiossen Implant® / Osstem TSIII® | R Ø4.0 | 1.0 / 2.0 / 3.0 | IPD/KT-IR-00 | IPD/KT-IR-01 |
| Neodent® Grand Morse™ | GM | 1.0 / 2.0 / 3.0 / 4.0 | IPD/KT-IR-00 | IPD/KT-IR-01 |
| Neodent® GM Abutment | RP Ø4.8 | 0.5 | IPD/KT-IW-00 | not listed |
| Neodent® GM Micro Abutment | NP | 0.5 Engaging / 0.3 Non-engaging | not listed | IPD/KT-IN-01 |
| MIS® Seven® | Narrow NP Ø3.3 | 0.5 / 1.5 / 2.5 | IPD/KT-IN-00 | IPD/KT-IN-01 |
| MIS® Seven® | Standard SP | 0.5 / 1.5 / 2.5 | IPD/KT-IN-00 | IPD/KT-IN-01 |
| MIS® Seven® | Wide WP | 0.5 / 1.5 / 2.5 | IPD/KT-IR-00 | IPD/KT-IR-01 |
| MIS® C1® | Standard SP | 0.7 / 1.5 / 2.5 / 3.5 | IPD/KT-IR-00 | IPD/KT-IR-01 |
| Megagen® AnyOne® | RP | 1.0 / 2.0 / 3.0 | IPD/KT-IR-00 | IPD/KT-IR-01 |
| Megagen® AnyRidge® | Ø4.0 | 1.0 / 2.0 / 3.0 | IPD/KT-IR-00 | IPD/KT-IR-01 |
Showing 44 catalogue combinations.
SEO & UX note: the user no longer needs to know the Narrow / Standard / Wide code first. Start with the implant system name and platform, and the page shows the corresponding kit for a crown or bridge. This turns a technical table into a practical selection aid while preserving the catalogue assignment even where it is less intuitive.
Workflow
Shortening a Ti-base without unnecessary wear of the guide tool
Use the Cutting Guide as a gauge for the final vertical height, not as a grinding stop. This keeps it accurate and, when used correctly, means it is subject to virtually no wear.
Select the correct kit for the system
In the table above, select the implant system, platform and Ti-base type: crown Engaging or bridge Non-engaging. Within the set, choose the target height of 3.5 / 5.0 / 6.5 mm.
Make the cut approximately 1 mm above the guide
Shorten the CAD/CAM Ti-base with a fine carborundum cutting disc. Make the initial cut slightly higher, approximately 1 mm above the surface of the guide tool.
Remove the guide before finishing
After the initial cut, remove the Cutting Guide so that the disc or finishing instrument cannot contact it during final adjustment.
Finish the cut gently with rubber
Finish the occlusal edge gently with a rubber polisher. The aim is a clean plane without unnecessary reduction of the functional part of the Ti-base.
Re-seat the guide and verify the height
Place the Cutting Guide back on the Ti-base and verify the final vertical height. Carry out any further reduction in small increments.
Prepare the TPA window according to the planned screw channel
On the available version with an angulation window, the space for TPA access can be checked. The prepared access must match the planned TPA fixation screw and the direction of the angulated screw channel.
Why the guide can last a very long time: if the cutting disc never runs into it and the guide is used only for repeated verification, the working edge is not normally ground away during use.
Video: shortening a Ti-base and preparing access for the TPA screwdriver
The practical demonstration adds real laboratory handling to the catalogue tables. It opens in a new tab.
Play videoAdapter + ratchet

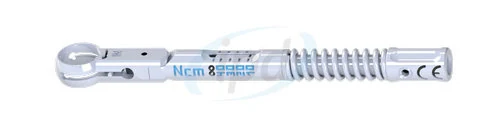

How to connect an RA instrument to the torque ratchet
RA adapter

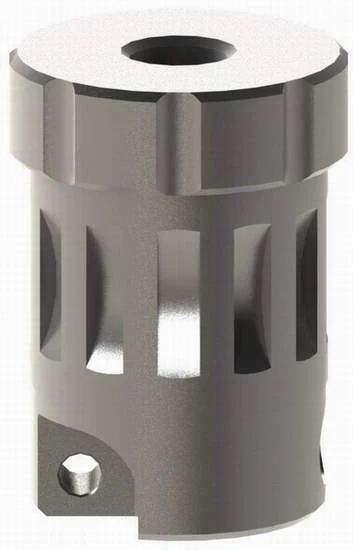

The supplied C1030 image illustrates the cylindrical adapter for a latch-type / RA shank. The current IPD catalogue lists a separate Ratchet adapter IPD/DI-KA-90. The adapter mechanically connects the RA screwdriver to the torque ratchet.
From an ergonomic point of view, this modularity has a major advantage: the same working tip can first be controlled with the fingers or a hand handle and then switched into the ratchet for definitive tightening. The instrument geometry relative to the screw head therefore remains unchanged during the workflow; only the way the instrument is held changes.
1. Insert the RA shank into a compatible adapter. The right-angle notch mechanically locks the shank against pull-out.
2. Insert the adapter into the ratchet. Verify full mechanical engagement before applying torque.
3. Set / monitor the correct torque. Do not derive the value from the screwdriver type; use the specification for the exact screw and implant connection.
Choosing length
18, 25 or 32 mm? Access determines the choice, not whether one tool is “better”
All three lengths have a place. A shorter instrument fits more easily in restricted intraoral space, the middle length is a versatile compromise, and the long 32 mm instrument offers greater reach through a taller prosthetic restoration or during laboratory handling. The choice is about ergonomics and case geometry.
18 mm · compact
Suitable where limited working space is the priority. In the supplied 18 mm set, the Multi-Unit instrument is an exception at 20 mm; the Czech set description also specifies TPA 25 mm.
Posterior accessCompact
25 mm · versatile
The longer working section makes access easier through typical crown or bridge heights while remaining manageable clinically.
ClinicUniversal
32 mm · maximum reach
Long version for deeper screw channels, larger restorations and the laboratory set with a 70 mm handle. Always consider available intraoral space before clinical use.
Long reachLaboratory
IPD kits
Five sets covering clinic, ratchet and laboratory use
The supplied catalogue and Czech product descriptions show a clear structure: two torque-ratchet sets, two sets with a short clinical handle and one long laboratory set.

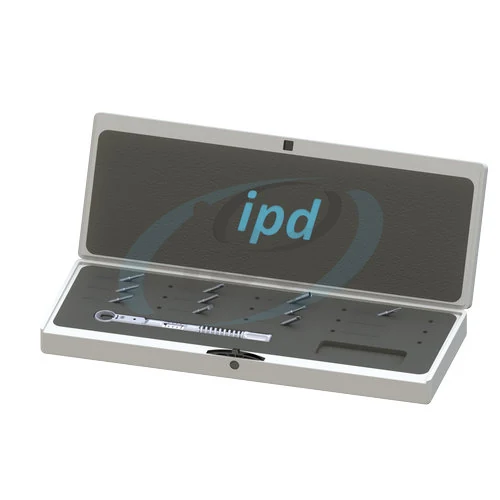

IPD/KT-DI-18

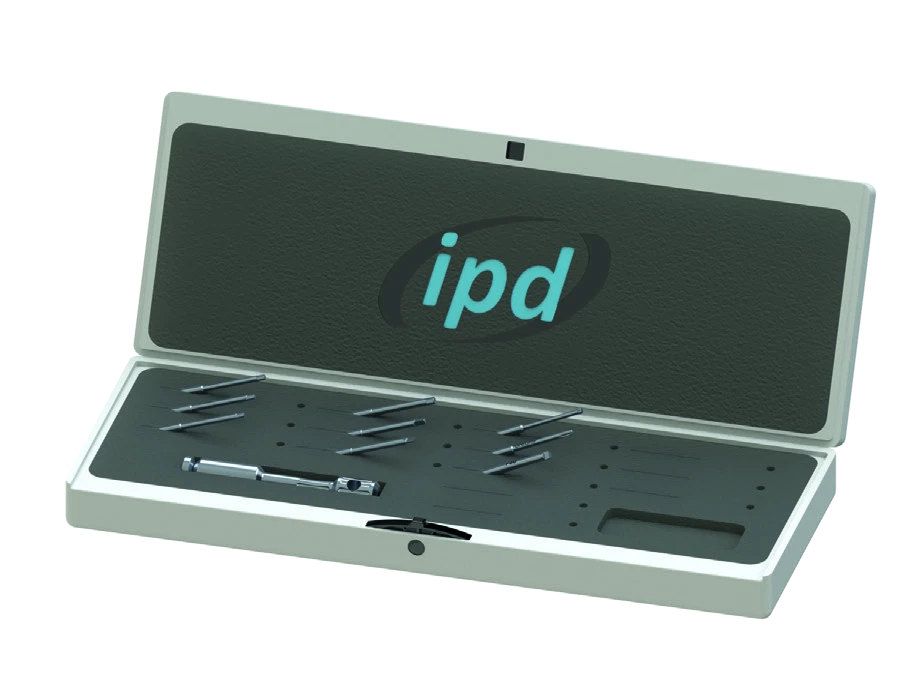

Ratchet set with the main prosthetic screwdrivers, torque ratchet and adapter.
18 mmRatchet

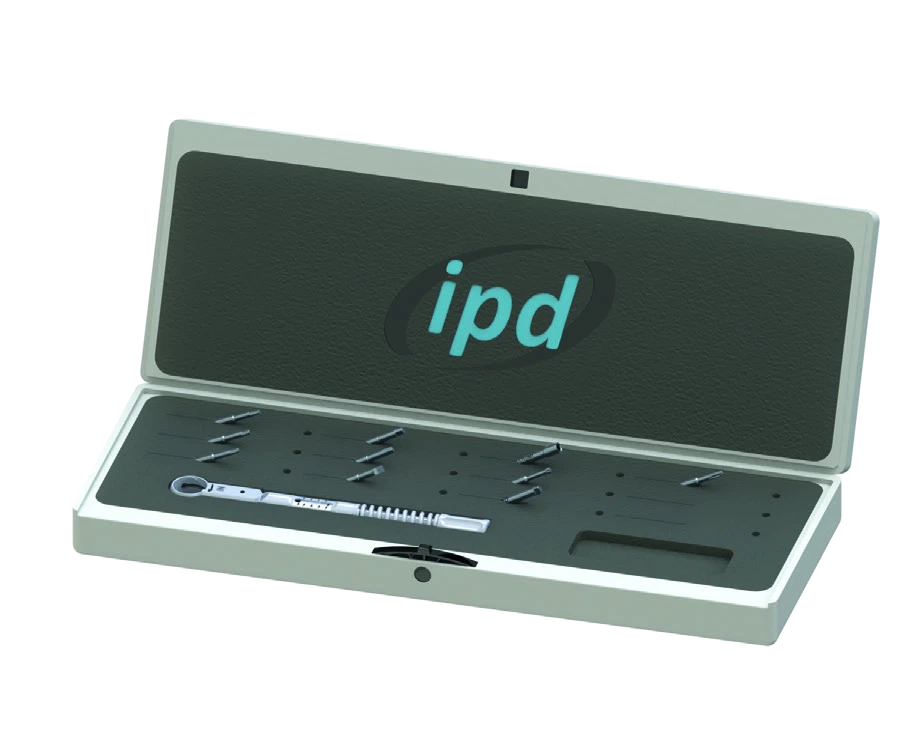

IPD/KT-MC-25

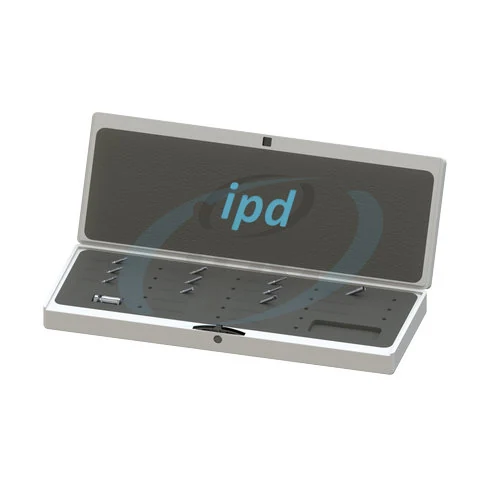

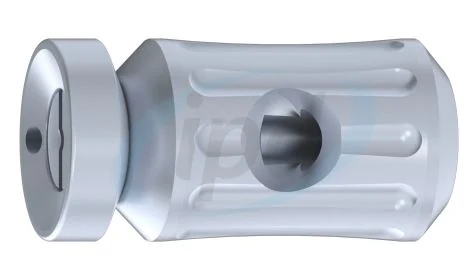

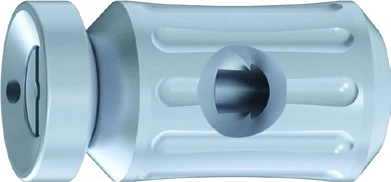

25 mm set with a clinical handle for the dental clinic and prosthetic workspace.
25 mmClinical handle

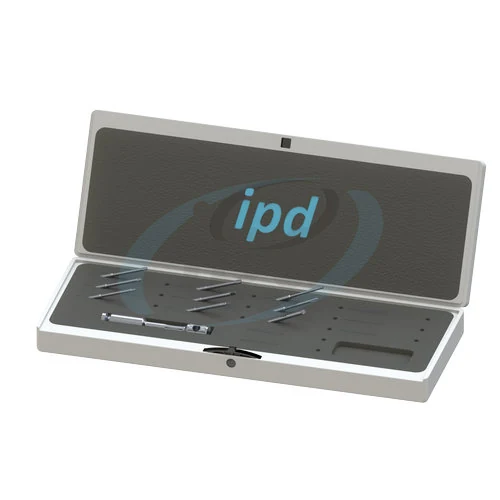

IPD/KT-ML-32

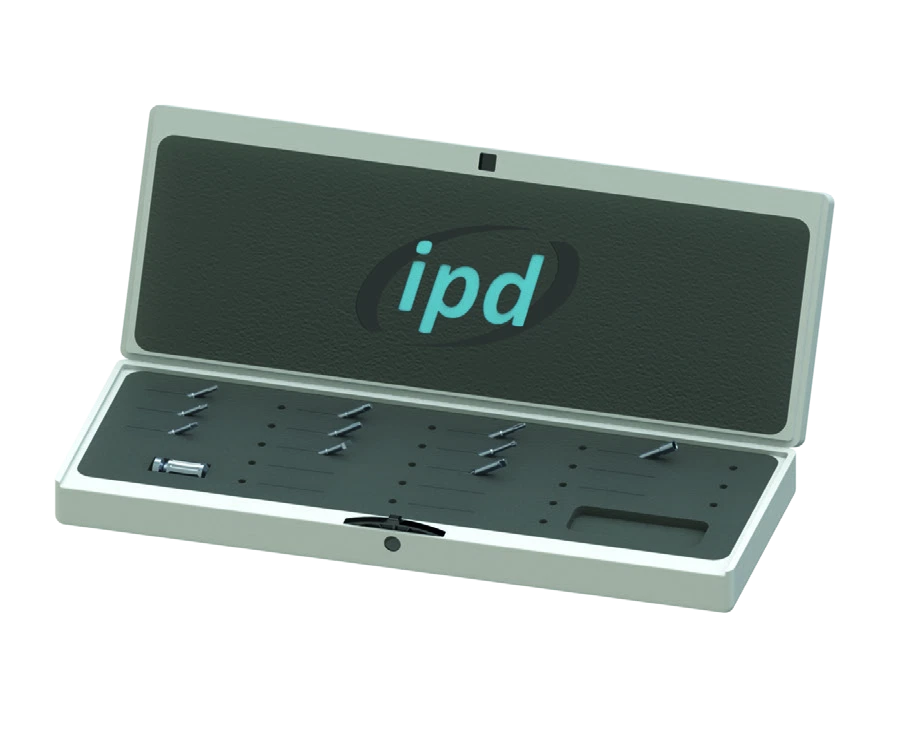

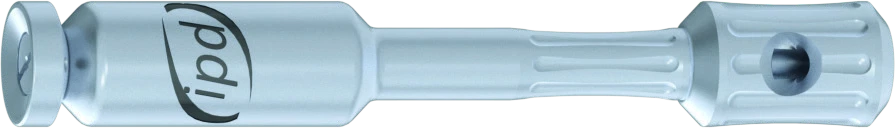

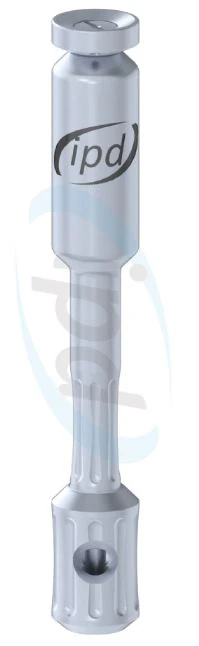

Laboratory set with 32 mm instruments and a 70 mm hand grip for extraoral work.
32 mmLab handle 70 mm
| Set | Primary length | Handling | Typical profiles in the set | Exceptions / note |
|---|---|---|---|---|
| IPD/KT-DI-18 | 18 mm | Torque ratchet + adapter | HEX 1.20 / 1.25 / 1.27 / 1.70, Square 1.25, Unigrip, Flat, TPA, Torx | Multi-Unit 20 mm; the supplied Czech description lists TPA 25 mm. |
| IPD/KT-DI-25 | 25 mm | Torque ratchet + adapter | Same basic profile set | Multi-Unit 20 mm. |
| IPD/KT-MC-18 | 18 mm | Clinical RA handle 16 mm | Same basic profile set | Multi-Unit 20 mm; the supplied Czech description lists TPA 25 mm. |
| IPD/KT-MC-25 | 25 mm | Clinical RA handle 16 mm | Same basic profile set | Multi-Unit 20 mm. |
| IPD/KT-ML-32 | 32 mm | Laboratory RA handle 70 mm | HEX 1.20 / 1.25 / 1.27 / 1.70, Square 1.25, Unigrip, Flat, TPA, Torx | Laboratory configuration without a Multi-Unit instrument in the supplied description. |
Screw specifications · IPD Catalogue 2024
Fixation-screw technical data: straight channel vs TPA angulated channel
Selecting a screwdriver requires more than knowing the implant brand. The catalogue tables distinguish the reference, TiN variant, compatibility, platform, head-seat type, head diameter, thread, L1, L2, total length, screwdriver profile and recommended torque. The data from catalogue pages 188–191 are reproduced below as searchable HTML so that a specific screw can be found quickly.
Conventional fixation screws
79 catalogue references. Typically, references ending in -00 / -01 / -02 / -03. Driver profiles vary by system: HEX, Unigrip, Torx, Star, Square, Neo GM and others.
TPA fixation screws
56 catalogue references. Typical distinguishing features include endings -50 / -51 / -52 and use of the TPA screwdriver. Each row has its own geometry and prescribed torque.
Conventional fixation screws for straight channels · 79 references
Showing 79 of 79 items.
| Reference | TiN reference | Compatibility | Platform | Seat | Head Ø | Thread / metric | L1 head | L2 body | LT total | Driver | Torque Ncm |
|---|---|---|---|---|---|---|---|---|---|---|---|
| IPD/AA-TN-00 | IPD/AA-TN-00/TIN | Nobel Biocare® Branemark System® · Nobel Biocare® Nobel Active® | ø3.5 | 70° | 2.25 | M1.6x0.35 | 2.15 | 5.15 | 7.30 | Unigrip | 35 |
| IPD/AA-TR-00 | IPD/AA-TR-00/TIN | Nobel Biocare® Branemark System® · Nobel Biocare® Nobel Active® | ø4.1 · ø4.3 | 75° | 2.4 | M2x0.4 | 1.5 | 5.85 | 7.35 | Unigrip | 35 |
| IPD/AA-TR-01 | IPD/AA-TR-01/TIN | External Hex (Plat. Regular) | ø4.1 | 75° | 2.5 | M2x0.4 | 1.67 | 4.6 | 6.27 | 1.20 Hex | 20 |
| IPD/AA-TR-02 | IPD/AA-TR-02/TIN | Nobel Biocare® Branemark System® · Nobel Biocare® Nobel Active® | ø4.1 · ø4.3 | Flat | 2.40 | M2x0.4 | 1.45 | 5.9 | 7.35 | Unigrip | 35 |
| IPD/AA-TW-00 | IPD/AA-TW-00/TIN | Nobel Biocare® Branemark System® | ø5.1 | 72° | 3.40 | M2.5x0.45 | 1.37 | 5.33 | 6.7 | Unigrip | 35 |
| IPD/AB-TR-00 | IPD/AB-TR-00/TIN | Multi-Unit | ø4.8 | Flat | 2,00 | M1.4x0.3 | 1.35 | 2.1 | 3.45 | Unigrip | 15 |
| IPD/AC-TN-00 | IPD/AC-TN-00/TIN | Nobel Biocare® Nobel Replace® Select | ø3.5 | Flat | 2.35 | M1.8x0.35 | 1.8 | 6.5 | 8.3 | Unigrip | 35 |
| IPD/AC-TR-00 | IPD/AC-TR-00/TIN | Nobel Biocare® Nobel Replace® Select | ø4.3 / ø5.0 | Flat | 2.4 | M2x0.4 | 1.55 | 8.35 | 9.9 | Unigrip | 35 |
| IPD/AD-TT-00 | IPD/AD-TT-00/TIN | Nobel Biocare® Nobel Active® | ø3.0 | 70° | 1.82 | M1.4x0.3 | 1.86 | 4.84 | 6,7 | Unigrip | 15 |
| IPD/BA-TR-00 | IPD/BA-TR-00/TIN | Biomet® 3i® Osseotite® (Plat. R) | ø4.1 | 75° | 2.35 | M2x0.4 | 1.79 | 5.81 | 7.6 | 1.20 Hex | 20 |
| IPD/BA-TR-01 | IPD/BA-TR-01/TIN | Biomet® 3i® Osseotite® (Plat. R) | ø4.1 | 75° | 2.35 | M2x0.4 | 1.79 | 5.81 | 7.6 | 1.25 Hex | 25 |
| IPD/BA-TR-02 | IPD/BA-TR-02/TIN | Biomet® 3i® Osseotite® | ø3.4 / ø4.1 / ø5.0 | Flat | 2.4 | M2x0.4 | 1.65 | 6.15 | 7.8 | 1.25 Square | 35 |
| IPD/BB-TR-01 | IPD/BB-TR-01/TIN | Biomet® 3i® Certain® | ø3.4 / ø4.1 / ø5.0 | Flat | 2.0 | M1.6x0.35 | 1.9 | 6.5 | 8.4 | 1.20 Hex | 20 |
| IPD/BB-TR-02 | - | Biomet® 3i® Certain® | ø4.1 / ø5.0 | 140° | 2.30 | M1.6x0.35 | 2.05 | 6.35 | 8.4 | 1.20 Hex | 20 |
| IPD/CA-TR-00 | IPD/CA-TR-00/TIN | Klockner® SK2-NK2 | ø4.2 | 90° | 2.45 | M1.8x0.35 | 2.39 | 3.56 | 5.95 | 1.70 Hex | 30 |
| IPD/CA-TR-01 | IPD/CA-TR-01/TIN | Klockner® SK2-NK2 | ø4.2 | 90° | 2.45 | M1.8x0.35 | 0.72 | 3.58 | 4.3 | Cross | 30 |
| IPD/CB-TR-00 | IPD/CB-TR-00/TIN | Klockner® Essential Cone® | ø4.5 | 90° | 2.18 | M1.8x0.35 | 2.3 | 4.9 | 7.2 | Star | 30 |
| IPD/CD-TN-00 | IPD/CD-TN-00/TIN | Klockner® Vega® | Ø3.5 | 90° | 2.15 | M1.6x0.35 | 2.43 | 5.57 | 8 | Star | 25 |
| IPD/CD-TR-00 | IPD/CD-TR-00/TIN | Klockner® Vega® | Ø4.0-4.5 | 90° | 2.15 | Special | 2.32 | 5.68 | 8 | Star | 25 |
| IPD/DA-TR-00 | IPD/DA-TR-00/TIN | Straumann® Tissue Level (synOcta® level) | ø4.8 | 90° | 2.4 | M2x0.4 | 1.2 | 3.3 | 4.5 | Torx | 35 |
| IPD/DA-TR-01 | IPD/DA-TR-01/TIN | Straumann® Tissue Level (Implant level) | ø4.8 / ø6.5 | 30° | 2.4 | M2x0.4 | 3.03 | 3.67 | 6.7 | Torx | 35 |
| IPD/DA-TR-02 | - | Straumann® Tissue Level | ø4.8 | Flat | 2.52 | M2x0.4 | 1.45 | 5.9 | 7.35 | Torx | 35 |
| IPD/DA-TR-03 | IPD/DA-TR-03/TIN | Straumann® Tissue Level | ø4.8 | 30° | 2.57 | M2x0.4 | 3.05 | 3.65 | 6.7 | Torx | 35 |
| IPD/DB-TR-00 | IPD/DB-TR-00/TIN | Straumann® Bone Level | ø3.3 / ø4.1 | 30° | 2.1 | M1.6x0.35 | 2.31 | 5.54 | 7.85 | Torx | 35 |
| IPD/DC-TR-00 | IPD/DC-TR-00/TIN | Straumann® BLX® | RB/WB | 90° | 2.1 | M1.6x0.35 | 1.5 | 4.6 | 6.1 | Torx | 30 |
| IPD/DD-TR-00 | IPD/DD-TR-00/TIN | Straumann® SRA® | ø3.5 / ø4.6 | 70° | 2.20 | M1.4x0.3 | 1.65 | 2.0 | 3.65 | Torx | 15 |
| IPD/EA-TN-00 | IPD/EA-TN-00/TIN | Astra® Osseospeed™ | ø3.0 | 120° | 2.1 | M1.4x0.3 | 2 | 5.5 | 7.5 | 1.27 Hex | 15 |
| IPD/EA-TR-00 | IPD/EA-TR-00/TIN | Astra® Osseospeed™ | ø3.5 - ø4.0 | Flat | 2.35 | M1.6x0.35 | 1.95 | 6.3 | 8.25 | 1.27 Hex | 20 |
| IPD/EA-TR-01 | IPD/EA-TR-01/TIN | Astra® Cono 200 | ø3.5-ø4.0 / ø4.5-ø5.0 | Flat | 2.25 | M1.4x0.3 | 1.85 | 2.95 | 4.8 | 1.27 Hex | 15 |
| IPD/EA-TW-00 | IPD/EA-TW-00/TIN | Astra® Osseospeed™ | ø4.5 - ø5.0 | Flat | 2.35 | M2x0.4 | 1.9 | 8.4 | 10.3 | 1.27 Hex | 25 |
| IPD/EB-TN-00 | IPD/EB-TN-00/TIN | Astra® Evolution® | ø3.6 | 60° | 2.15 | M1.6x0.35 | 2.12 | 5.33 | 7.45 | 1.27 Hex | 20 |
| IPD/EB-TR-00 | IPD/EB-TR-00/TIN | Astra® Evolution® | ø4.2 | 100° | 2.35 | M1.8x0.35 | 1.92 | 5.70 | 7.62 | 1.27 Hex | 20 |
| IPD/FA-TR-00 | IPD/FA-TR-00/TIN | Zimmer® Screw Vent® | ø3.5/ ø4.5 / ø5.7 | 140° | 2.1 | M1.8x0.35 | 2.54 | 5.66 | 8.2 | 1.25 Hex | 30 |
| IPD/FB-TR-00 | IPD/FB-TR-00/TIN | Zimmer® SwissPlus® | ø4.8 | 140° | 2.3 | M2x0.4 | 2.55 | 6.75 | 9.3 | 1.25 Hex | 30 |
| IPD/FB-TR-01 | IPD/FB-TR-01/TIN | Zimmer® SwissPlus® | ø4.8 | 30° | 2.4 | M2x0.4 | 3.03 | 3.87 | 6.9 | 1.25 Hex | 30 |
| IPD/FC-TT-00 | IPD/FC-TT-00/TIN | Zimmer® Eztetic® | Ø3.1 | 140° | 1.95 | M1.6x0.35 | 2.81 | 5.94 | 8.75 | 1.25 Hex | 30 |
| IPD/GA-TN-00 | IPD/GA-TN-00/TIN | BTI® External Hex | ø3.5 | Flat | 2.35 | M2x0.4 | 1.7 | 3.85 | 5.55 | 1.20 Hex | 20 |
| IPD/GA-TW-00 | IPD/GA-TW-00/TIN | BTI® External Hex | ø5.5 | Flat | 2.25 | M2x0.4 | 1.7 | 6.15 | 7.85 | 1.20 Hex | 20 |
| IPD/GB-TR-00 | IPD/GB-TR-00/TIN | BTI® Internal Universal® | Universal® ø4.1 / Wide ø5.5 | Flat | 2.4 | M1.8x0.35 | 1.85 | 5.2 | 7.05 | 1.20 Hex | 20 |
| IPD/GC-TR-01 | IPD/GC-TR-01/TIN | BTI® Multi-im® | RP | Flat | 2.0 | M1.4x0.3 | 1.5 | 2.1 | 3.6 | 1.20 Hex | 20 |
| IPD/HA-TN-00 | IPD/HA-TN-00/TIN | Microdent® Microdent® System | ø3.5 | 140° | 2.5 | M1.8x0.35 | 2.13 | 3.87 | 6 | 1.20 Hex | 20 |
| IPD/HA-TR-00 | IPD/HA-TR-00/TIN | Microdent® Microdent® System | ø4.2 / ø5.1 | 120° | 2.7 | M2x0.4 | 2.5 | 5.5 | 8 | 1.75 Hex | 30 |
| IPD/IA-TR-00 | IPD/IA-TR-00/TIN | Dentsply® Xive® Friadent® | ø3.4 / ø3.8 / ø4.5 | 90° | 2.05 | M1.6x0.35 | 2.1 | 6.75 | 8.85 | 1.20 Hex | 24 |
| IPD/IB-TR-00 | - | Dentsply® Ankylos® Balance Base Narrow | C/X | 60° | 2.4 | M1.6x0.35 | 1.66 | 3.04 | 4.7 | 1.0 Hex | 15 |
| IPD/IB-TR-01 | - | Dentsply® Ankylos® | C/X | 60° | 2.05 | M1.8x0.35 | 2 | 6.15 | 8.15 | 1.0 Hex | 25 |
| IPD/ID-TT-00 | - | Osteoplus® Iridium™ Argentum® ø3.3 | /ø3.8 / ø4.2 / ø4.8 | 120° | 2.40 | M1.8x0.35 | 1.69 | 5.83 | 7.52 | 1.25 Hex | 25 |
| IPD/JA-TR-00 | IPD/JA-TR-00/TIN | Camlog® Camlog® Implant System | ø3.3 / ø3.8 / ø4.3 | 90° | 2.1 | M1.6x0.35 | 2.35 | 8.1 | 10.45 | 1.25 Hex | 20 |
| IPD/JA-TX-00 | IPD/JA-TX-00/TIN | Camlog® Camlog® Implant System | ø5.0 | 90° | 2.5 | M2x0.4 | 2.34 | 8.12 | 10.45 | 1.27 Hex | 20 |
| IPD/JB-TR-00 | IPD/JB-TN-00/TIN | Camlog® Conelog® System | Ø3.3 / Ø3.8 / Ø4.3 | 120° | 2.15 | M1.6x0.35 | 2.01 | 6.86 | 8.87 | Hex. 1.25 | 20 |
| IPD/KA-CI-08 | - | Hollow Screw | - | Flat | 2.8 | M2.65x0.3 | 0.7 | 1.4 | 2.1 | IPD cross | 10 |
| IPD/LB-TR-00 | IPD/LB-TR-00/TIN | BioHorizons® Tapered Internal ø3 | / ø3.5 / ø4.5 / ø5.7 | 90° | 2.35 | M1.8x0.35 | 2.42 | 4.83 | 7.25 | 1.27 Hex | 35 |
| IPD/MA-TN-00 | IPD/MA-TN-00/TIN | Sweden & Martina® Outlink® | ø3.3 | 120° | 2.18 | M1.8x0.35 | 1.75 | 5.75 | 7.5 | 1.27 Hex | 25 |
| IPD/MB-TN-00 | IPD/MB-TN-00/TIN | Sweden & Martina® Premium™ Kohno® | ø3.3 / ø3.8 | 120° | 2.2 | M1.8x0.35 | 1.78 | 6.32 | 8.1 | 1.27 Hex | 25 |
| IPD/MB-TR-00 | IPD/MB-TR-00/TIN | Sweden & Martina® Premium™ Kohno® | ø4.25 / ø5.0 | 120° | 2.4 | M2x0.4 | 1.78 | 6 | 7.78 | 1.27 Hex | 25 |
| IPD/NA-TN-00 | IPD/NA-TN-00/TIN | Phibo® TSH® | S2 | 120° | 2.23 | M1.8x0.35 | 1.92 | 6.08 | 8 | 1.25 Hex | 35 |
| IPD/NA-TW-00 | - | Phibo® TSH® | S5 | 120° | 2.5 | M2x0.4 | 2.5 | 5.5 | 8 | 1.25 Hex | 35 |
| IPD/OB-TN-00 | IPD/OB-TN-00/TIN | Osstem Implant® TSIII | Ø3.5 | 90° | 2.20 | M1.6x0.35 | 2.41 | 7.79 | 10.2 | 1.20 Hex | 20 |
| IPD/OB-TR-00 | IPD/OB-TR-00/TIN | Osstem Implant® TSIII | Ø4.0 | 90° | 2.30 | M2x0.4 | 2.23 | 6.12 | 8.35 | 1.20 Hex | 30 |
| IPD/QB-TR-00 | IPD/QB-TR-00/TIN | Biotech® Dental Kontact® | RP | 90° | 1.95 | M1.4x0.3 | 1.8 | 6.02 | 7.82 | 1.20 Hex | 20 |
| IPD/RA-TN-00 | IPD/RA-TN-00/TIN | Neodent® Helix® HE | Ø3.3 | Flat | 2.30 | M1.8x0.35 | 1.9 | 5.8 | 7.7 | Hex. 1.20 | 32 |
| IPD/RA-TW-00 | IPD/RA-TW-00/TIN | Neodent® Helix® HE | Ø5.0 | Flat | 3.00 | M2.5x0.45 | 2.1 | 5.5 | 7.6 | Hex. 1.20 | 32 |
| IPD/RB-TR-00 | IPD/RB-TR-00/TIN | Neodent® Grand MorseTM GM | RP | 60° | 1.86 | M1.6x0.35 | 1.84 | 7.93 | 9.77 | Neo GM | 20 |
| IPD/RC-TR-00 | IPD/RC-TR-00/TIN | Neodent® GM abutment | Ø4.8 | 90° | 2.35 | M2x0.25 | 1.53 | 2.25 | 3.78 | Neo GM | 10 |
| IPD/RD-TN-00 | IPD/RD-TN-00/TIN | Neodent® GM micro abutment | Ø3.5 | Flat | 1.90 | M1.4x0.3 | 1.72 | 1.99 | 3.71 | Neo GM | 10 |
| IPD/SB-TR-00 | IPD/SB-TR-00/TIN | Bego® Semados® Ø3.25-3.75 | / Ø4.1 / Ø4.5 | 70° | 2.35 | M1.8x0.35 | 2.35 | 5.25 | 7.6 | 1.25 Hex | 30 |
| IPD/TA-TT-00 | IPD/TA-TT-00/TIN | MIS® Seven® | Narrow 3.3 | 120° | 2.1 | M1.6x0.35 | 2.58 | 5.1 | 7.68 | 1.25 Hex | 30 |
| IPD/TB-TR-00 | IPD/TB-TR-00/TIN | MIS® C1/V3® | Standard | 120° | 2.2 | UNF 1-72 | 2.44 | 5.18 | 7.62 | 1.25 Hex | 30 |
| IPD/UB-TN-00 | IPD/UB-TN-00/TIN | DIO® UFII | NP | 90° | 1.85 | M1.4x0.3 | 2.05 | 5.45 | 7.5 | 1.20 Hex | 20 |
| IPD/UB-TR-00 | IPD/UB-TR-00/TIN | DIO® UFII | RP | 120° | 2.45 | M2x0.4 | 1.95 | 6.55 | 8.5 | 1.20 Hex | 30 |
| IPD/WA-TR-00 | IPD/WA-TR-00/TIN | Megagen® AnyOne® | RP | 120° | 2.3 | M2x0.4 | 1.9 | 8.0 | 9.9 | 1.20 Hex | 35 |
| IPD/WB-TR-00 | IPD/WB-TR-00/TIN | Megagen® AnyRidge® | RP | Flat | 2.1 | M1.8x0.35 | 2 | 6 | 8 | 1.20 Hex | 25 |
| IPD/VA-TR-00 | - | Flat | 2.4 | M2x0.4 | 2.2 | 5.8 | 8 | 1.20 Hex | 25 | ||
| IPD/XA-TR-00 | IPD/XA-TR-00/TIN | Dentium® Implantium® / Superline™ | ø4.0 / ø4.5 / ø5.0 | 120° | 2.3 | M2x0.4 | 2.18 | 8.01 | 10.2 | 1.27 Hex | 25 |
| IPD/XA-TR-02 | - | Nobel Biocare® Branemark System® · Nobel Biocare® Nobel Active® | ø4.1 · ø4.3 | Flat | 2.52 | M2x0.4 | 1.45 | 5.9 | 7.35 | 1.20 Hex | 30 |
| IPD/YB-TR-00 | IPD/YB-TR-00/TIN | Medentis® ICX | RP | 30° | 2.5 | M1.6x0.35 | 2.92 | 6.6 | 9.52 | 1.40 Hex | 30 |
| IPD/ZA-TR-00 | - | Bredent® Blue Sky™ | ø3.5/ø4.5/ø5.5 | 120° | 2.17 | M1.8x0.35 | 1.75 | 7.45 | 9.2 | Unigrip · Bredent® | 25 |
| IPD/1A-TR-00 | IPD/1A-TR-00/TIN | Global D® In-kone® | RP | 120° | 2.15 | M1.8x0.35 | 2.24 | 6.24 | 8.48 | Hex. 1.20 | 15 |
| IPD/2A-TR-00 | IPD/2A-TR-00/TIN | Anthogyr® Axiom® BL | RP | 40° | 2.20 | M1.6x0.35 | 2.38 | 5.54 | 7.92 | Hex. 1.18 | 25 |
| IPD/3A-TR-00 | IPD/3A-TR-00/TIN | Galimplant® Multi-Position Aesthetic® | ø3.8 | 140° | 2.5 | M2x0.4 | 1.5 | 3.1 | 4.6 | Hex 1.30 | 25 |
TPA fixation screws for angulated channels · 56 references
Showing 56 of 56 items.
| Reference | Compatibility | Platform | Seat / angle | Head Ø | Thread / metric | L1 head | L2 body | LT total | Driver | Torque Ncm |
|---|---|---|---|---|---|---|---|---|---|---|
| IPD/AA-TN-50 | Nobel Biocare® Branemark System® · Nobel Biocare® Nobel Active® | Ø3.5 | 70° | 2.3 | M1.6x0.35 | 2.08 | 4.72 | 6.8 | TPA | 20 |
| IPD/AA-TR-50 | Nobel Biocare® Branemark System® · Sweden & Martina® Outlink® · Phibo® TSH® | Ø4.1 · S3-S4 | 75° | 2.3 | M2x0.4 | 1.93 | 3.87 | 5.8 | TPA | 25 |
| IPD/AA-TR-52 | Nobel Biocare® Branemark System® · Biomet® 3i® Externa™ 3i® · BTI® | Ø4.1 · Ø3.25 / Ø4.1 / Ø5.1 · Ø4.1 / Ø5.5 | Flat | 2.3 | M2x0.4 | 1.4 | 4.4 | 5.8 | TPA | 25 |
| IPD/AA-TW-50 | External hex · Nobel Biocare® Branemark System® | Ø5.1 | 72° | 2.85 | M2.5x0.45 | 1.61 | 4.8 | 6.41 | TPA | 25 |
| IPD/AB-TR-50 | Multi-unit / Multi-im® | Ø4.8 | Flat | 2.3 | M1.4x0.3 | 1.5 | 2.1 | 3.6 | TPA | 15 |
| IPD/AB-TR-51 | Multi-Unit | Ø4.8 | Flat | 2.25 | M1.4X0.3 | 3.25 | 2.10 | 5.35 | TPA | 15 |
| IPD/AC-TN-50 | Nobel Biocare® Nobel Replace® Select | Ø3.5 | Flat | 2.25 | M1.8x0.35 | 1.4 | 6.1 | 7.5 | TPA | 25 |
| IPD/AC-TN-51 | Nobel Biocare® Nobel Replace® Select | Ø3.5 | Flat | 2.25 | M1.8x0.35 | 1.4 | 5.4 | 6.8 | TPA | 25 |
| IPD/AC-TR-50 | Nobel Biocare® Nobel Replace® Select · Astra® OsseoSpeed® | Ø4.3 / Ø5.0 · Ø4.5-Ø5.0 | Flat | 2.3 | M2x0.4 | 1.4 | 7.4 | 8.8 | TPA | 25 |
| IPD/AC-TR-51 | Nobel Biocare® Nobel Replace® Select | Ø4.3 / Ø5.0 | Flat | 2.3 | M2x0.4 | 1.3 | 6.8 | 8.1 | TPA | 25 |
| IPD/AD-TR-50 | Nobel Biocare® Nobel Active® | Ø4.3 | 75° | 2.3 | M2x0.4 | 2.0 | 5.0 | 7 | TPA | 25 |
| IPD/AD-TT-50 | Nobel Biocare® Nobel Active® | Ø3.0 | 70° | 2.3 | M1.4x0.3 | 2.0 | 4.65 | 6.65 | TPA | 15 |
| IPD/BB-TR-51 | Biomet® 3i® Certain® | Ø3.4/ Ø4.1 / Ø5.0 | Flat | 2.25 | M1.6x0.35 | 1.35 | 6.25 | 7.6 | TPA | 20 |
| IPD/CA-TR-50 | Klockner® SK2-NK2 | Ø4.2 | 90° | 2.3 | M1.8x0.35 | 1.50 | 3.00 | 4.5 | TPA | 25 |
| IPD/CB-TR-50 | Klockner® Essential Cone® | Ø4.5 | 90° | 2.3 | M1.8x0.35 | 1.65 | 4.85 | 6.5 | TPA | 25 |
| IPD/CD-TN-50 | Klockner® Vega® | Ø3.5 | 90° | 2.3 | M1.6x0.35 | 1.65 | 5.7 | 7.35 | TPA | 25 |
| IPD/CD-TR-50 | Klockner® Vega® | Ø4.0 / Ø4.5 | 90° | 2.25 | Especial | 1.8 | 5.65 | 7.45 | TPA | 25 |
| IPD/DA-TR-50 | Straumann® Tissue Level (Sobre synOcta®) | Ø4.8 / Ø6.0 | 90° | 2.3 | M2x0.4 | 1.65 | 3.32 | 4.97 | TPA | 25 |
| IPD/DA-TR-51 | Straumann® Tissue Level (Implant level) | Ø4.8 / Ø6.0 | 30° | 2.3 | M2x0.4 | 2.65 | 3.65 | 6.3 | TPA | 25 |
| IPD/DB-TR-50 | Straumann® Bone Level | Ø3.3 / Ø4.1 | 30° | 2.3 | M1.6x0.35 | 2.15 | 5.55 | 7.7 | TPA | 20 |
| IPD/DD-TR-50 | Straumann® SRA® | Ø3.5 / Ø4.6 | 70° | 2.25 | M1.4x0.3 | 1.82 | 5.55 | 3.91 | TPA | 20 |
| IPD/EA-TN-50 | Astra® OsseoSpeed® | Ø3.0 | 120° | 2.25 | M1.4x0.35 | 1.65 | 5.45 | 7.1 | TPA | 15 |
| IPD/EA-TR-50 | Astra® OsseoSpeed® | Ø3.5-Ø4.0 | Flat | 2.25 | M1.6x0.35 | 1.35 | 6.05 | 7.4 | TPA | 20 |
| IPD/EA-TR-51 | Astra Uni 200 / 450 | All | Flat | 2.3 | M1.4x0.3 | 1.50 | 2.90 | 4.4 | TPA | 15 |
| IPD/EB-TN-50 | Astra® Evolution® | Ø3.6 | 60° | 2.3 | M1.6x0.35 | 1.99 | 5.11 | 7.1 | TPA | 20 |
| IPD/EB-TR-50 | Astra® Evolution® | Ø4.2 | 100° | 2.3 | M1.8x0.35 | 2.22 | 5.38 | 7.6 | TPA | 25 |
| IPD/FA-TR-50 | Zimmer® Screw Vent® | Ø3.5/ Ø4.5 / Ø5.7 | 140° | 2.25 | M1.8x0.35 | 1.73 | 4.97 | 6.7 | TPA | 25 |
| IPD/FC-TT-50 | Zimmer® Eztetic® | Ø3.1 | 140° | 2.3 | M1.6x0.35 | 1.56 | 5.72 | 7.28 | TPA | 20 |
| IPD/GA-TN-50 | BTI® Externa Universal | Ø3.5 | Flat | 2.3 | M2x0.4 | 1.5 | 3.6 | 5.1 | TPA | 25 |
| IPD/GB-TR-50 | BTI® Interna | Universal® Ø4.1 / Ancha Ø5.5 | Flat | 2.3 | M1.8x0.35 | 1.5 | 5.0 | 6.5 | TPA | 25 |
| IPD/HA-TN-50 | Microdent® Microdent® System | Ø3.5 | 140° | 2.3 | M1.8x0.35 | 1.6 | 4.0 | 5.6 | TPA | 25 |
| IPD/HA-TR-50 | Microdent® Microdent® System | Ø4.2 / Ø5.1 | 120° | 2.3 | M2x0.4 | 1.85 | 4.15 | 6 | TPA | 25 |
| IPD/IA-TR-50 | Dentsply® Xive® Friadent® | Ø3.8 | 90° | 2.3 | M1.6x0.35 | 1.66 | 5.44 | 7.1 | TPA | 20 |
| IPD/IB-TR-51 | Dentsply® Ankylos® | C/X | 60° | 2.3 | M1.8x0.35 | 1.89 | 5.41 | 7.3 | TPA | 25 |
| IPD/LB-TR-50 | BioHorizons® Tapered Internal Ø3.0 | / Ø3.5 / Ø4.5 / Ø5.7 | 90° | 2.3 | M1.8x0.35 | 1.89 | 4.61 | 6.5 | TPA | 25 |
| IPD/MA-TN-50 | Sweden & Martina® Outlink® | Ø3.3 | 120° | 2.3 | M1.8x0.35 | 1.55 | 4.25 | 5.80 | TPA | 25 |
| IPD/MB-TN-50 | Sweden & Martina® Premium™ Kohno® · Phibo® TSH® | Ø3.3 / Ø3.8 · S2 | 120° | 2.3 | M1.8x0.35 | 1.52 | 4.88 | 6.4 | TPA | 25 |
| IPD/MB-TR-50 | Sweden & Martina® Premium™ Kohno® | Ø4.25 / Ø5.0 | 120° | 2.3 | M2x0.4 | 1.55 | 4.85 | 6.4 | TPA | 25 |
| IPD/OB-TN-50 | Osstem Implant® TSIII | Ø3.5 | 60° | 2.3 | M1.55x0.35 | 1.98 | 7.52 | 9.50 | TPA | 20 |
| IPD/OB-TR-50 | Osstem Implant® TSIII | Ø4.0 | 90° | 2.3 | M2x0.4 | 1.36 | 6.14 | 7.50 | TPA | 25 |
| IPD/QB-TR-50 | Biotech® Dental Kontact® | RP | 90° | 2.3 | M1.4x0.3 | 1.75 | 6.0 | 7.75 | TPA | 15 |
| IPD/RA-TN-50 | Neodent® Helix® HE | Ø3.3 | Flat | 2.25 | M1.8x0.35 | 1.25 | 4.85 | 6.10 | TPA | 25 |
| IPD/RA-TW-50 | Neodent® Helix® HE | Ø5.0 | Flat | 2.85 | M2.5x0.45 | 0.50 | 5.40 | 5.90 | TPA | 25 |
| IPD/RB-TR-50 | Neodent® Grand MorseTM GM | GM | 60° | 2.3 | M1.6x0.35 | 1.98 | 7.52 | 9.50 | TPA | 20 |
| IPD/RC-TR-50 | Neodent® GM abutment | Ø4.8 | 90° | 2.35 | M2x0.25 | 1.60 | 2.23 | 3.83 | TPA | 10 |
| IPD/RD-TN-50 | Neodent® GM micro abutment | Ø3.5 | Flat | 2.25 | M1.4x0.3 | 1.40 | 1.99 | 3.99 | TPA | 10 |
| IPD/SB-TR-50 | Bego® Semados® | Ø3.25-Ø3.75 / Ø4.1 / Ø4.5 | 70° | 2.3 | M1.80x0.35 | 1.95 | 4.95 | 6.90 | TPA | 25 |
| IPD/TA-TT-50 | MIS® Seven® | Narrow 3.3 | 120° | 2.3 | M1.6x0.35 | 1.72 | 4.88 | 6.6 | TPA | 25 |
| IPD/TB-TR-50 | MIS® C1/V3® | Standard | 120° | 2.3 | UNF 1-72 | 2.35 | 4.85 | 7.2 | TPA | 25 |
| IPD/UB-TN-50 | DIO® UFII | NP | 90° | 2.3 | M1.40x0.3 | 1.6 | 5.35 | 6.95 | TPA | 20 |
| IPD/UB-TR-50 | DIO® UFII | RP | 120° | 2.3 | M2x0.4 | 1.95 | 6.55 | 8.5 | TPA | 25 |
| IPD/WA-TR-50 | Megagen® AnyOne® | RP | 120° | 2.3 | M2x0.4 | 1.8 | 7.95 | 9.75 | TPA | 25 |
| IPD/XA-TR-50 | Dentium® Implantium® /Superline™ | RP | 120° | 2.3 | M2x0.4 | 1.8 | 7.95 | 9.75 | TPA | 25 |
| IPD/YB-TR-50 | Medentis® ICX | RP | 30° | 2.3 | M1.6x0.35 | 3.2 | 5.25 | 8.45 | TPA | 20 |
| IPD/3A-TR-50 | Galimplant® Multi-Position Aesthetic® | ø3.8 | 140° | 2.5 | M2x0.4 | 1.5 | 2.65 | 4.15 | TPA | 25 |
| IPD/3A-TR-51 | Galimplant® Multi-Position Aesthetic® | ø3.8 | 140° | 2.5 | M2x0.4 | 3.85 | 2.65 | 6.50 | TPA | 25 |
Important interpretation note: the tables are faithfully transcribed from the supplied IPD 2024 catalogue. Values are not recalculated or corrected in this presentation. If the geometry of a specific item appears unusual or differs from newer documentation, verify the current IFU / catalogue revision before ordering and clinical use. Tightening torque is a property of the specific screw and connection, not of the screwdriver itself.
Practical use
Five steps for safer screw handling and easier maintenance
The most common problem is not that the instrument “does not work”, but that the wrong profile, length or torque was selected. A simple control sequence can prevent this.
Identify the connection
Start with the system, platform and exact fixation screw. Only then select the screwdriver profile.
Choose the length
Select 18, 25 or 32 mm according to access, screw-channel depth and restoration geometry. Longer is not automatically better.
Verify full engagement
The tip must seat fully in the screw socket without rocking. An incorrect profile can damage the fixation-screw head.
Tighten to the correct torque
For definitive tightening, use the ratchet and the torque specified for the exact component.
Clean, inspect and sterilise
Before clinical use, follow the current IFU and monitor wear of both the working tip and the RA shank.
Instrument troubleshooting
Tip inspection, axial guidance and torque verification
When investigating recurrent screw loosening, separate the instrument chain into three questions: does the driver truly match the screw geometry, is it fully engaged and guided along the intended axis, and does the torque instrument actually deliver the expected torque?
System-compatible driver
The same nominal profile designation does not by itself prove identical tolerance, engagement depth or tip condition. During troubleshooting, using the driver specified for the exact component removes one tolerance variable.
Full engagement and axial guidance
In a straight screw channel, the working tip should engage the screw head fully and be guided as closely as possible along its axis. In posterior regions, access, mouth opening and instrument length may make this more difficult in practice.
Verification of delivered torque
A torque ratchet should not be labelled inaccurate without evidence. When investigating a recurrent mechanical complication, however, verifying its output according to the manufacturer’s IFU or a validated procedure is a simple way to exclude this variable.
Posterior access. A study simulating restricted intraoral space found that a hand driver alone did not reliably generate sufficient torque in the posterior region. This supports using a mechanical torque-limiting device for definitive tightening rather than tightening “by feel”. Hill et al., 2007 →
Do not transfer conclusions between different geometries. In an off-axis hexalobular system, values at 25–28° were lower than at smaller angles. These values are specific to the angulated system studied and do not represent an allowable deviation for a conventional straight HEX driver. Opler et al., 2020 →
FAQ
Frequently asked questions about IPD prosthetic screwdrivers
What is the difference between 18, 25 and 32 mm?
The main difference is working length. The short version is compact, 25 mm is versatile and 32 mm provides greater reach. The final choice depends on intraoral space, restoration height and access to the screw head.
What does RA mandrel mean?
RA is a latch-type shank with a right-angle notch that locks mechanically into a compatible hand handle or ratchet adapter, creating a common platform for different working tips.
When should a TPA screwdriver be used?
For fixation screws designed for an angulated transocclusal / ASC screw channel. The supplied Czech set descriptions state TPA use from 0–30°, but the maximum permissible angle is always defined by the exact TPA system and must be verified in its documentation.
Can one screwdriver be used for all implant systems?
Not on a “one tip fits all” basis. The IPD portfolio covers many compatible systems, but the exact fixation-screw socket geometry must always be matched to the correct instrument.
What torque should I set on the ratchet?
Use the value specified for the exact screw, abutment and implant system. There is no single universal torque for all IPD screws. Use the Tightening Torque page for orientation and always follow the current IFU.
Is a torque ratchet the same as a hand handle?
No. A hand handle is for manual manipulation without defined torque. A torque ratchet is designed to deliver controlled tightening torque through the appropriate adapter.
Technical data on lengths, profiles and sets are based on the IPD 2026 catalogue and the supplied product descriptions. Current catalogue: IPD Product Catalogue 2026. Before clinical use, always follow the current IFU for the exact instrument and component.
Exklusiv Dent · technical support
Not sure about the profile, length or tightening torque?
Send us the implant system and fixation-screw reference. We will help select the correct IPD instrument and verify the torque for the indication.
